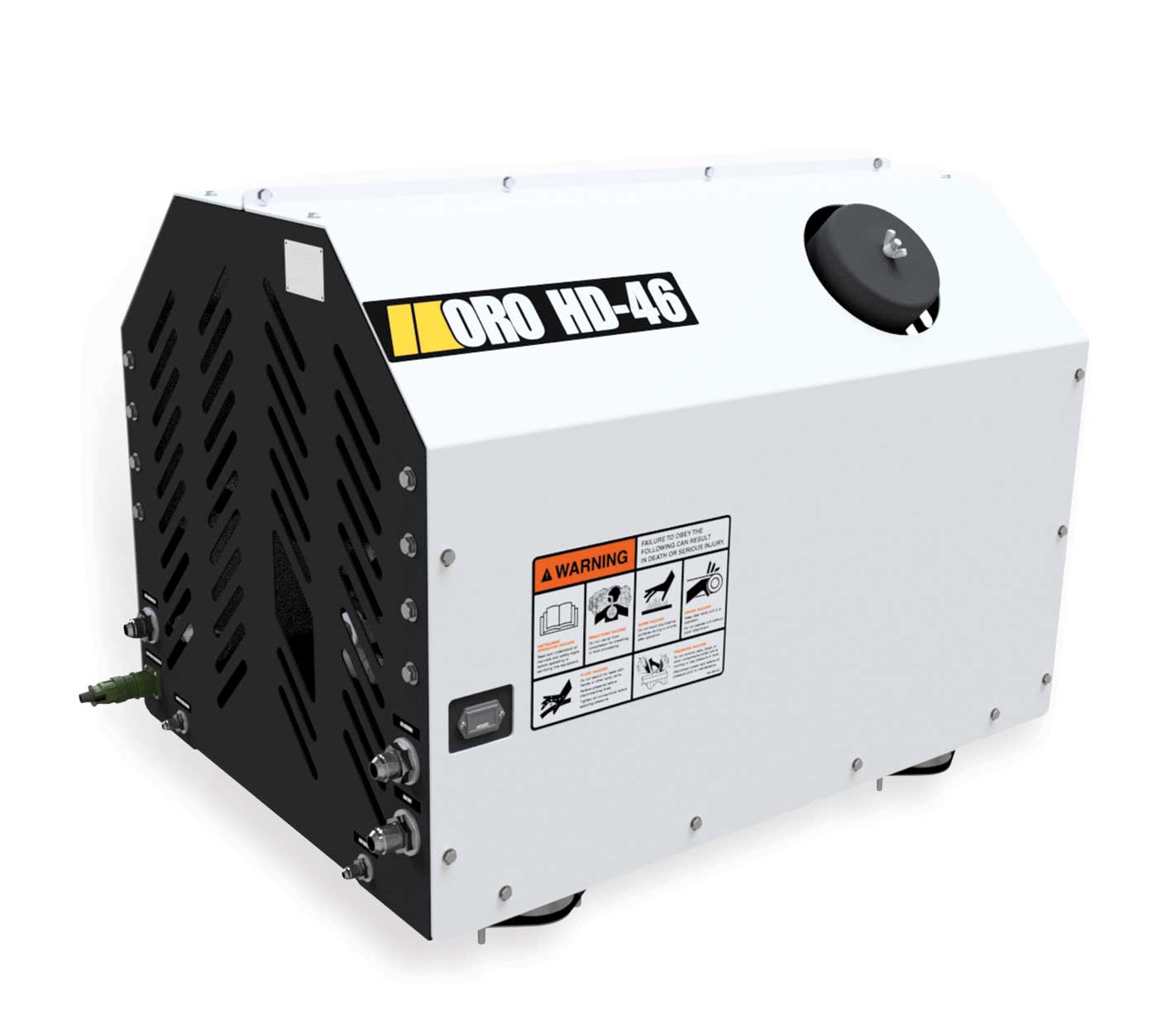

ORO HD-46
Hyd Compressor
The ORO HD-46 compressor is born out of the requirement for an extremely reliable compressor that will stand up to the most demanding mobile applications – guaranteed.
Originally designed for use in open-pit mines in the Canadian Arctic, these units will provide years of trouble-free service and continue to operate where other systems fail. The HD-46 is built around the Champion® R-30D reciprocating compressor pump and high-quality hydraulic components, which combine to create the most reliable compressor, inside and out.
ORO Accessories
ORO HD-46
Specifications
AIR COMPRESSOR OUTPUT
HYDRAULIC FLOW REQUIRED
ENGINE/SHAFT RPM
COOLER
HYDRAULIC PUMP
INTAKE FILTER
WEIGHT (DRY)
DIMENSIONS (INCH)
ELECTRICAL VOLTAGE
AIR RECEIVER
HYD RESERVOIR CAPACITY
SAFETY FEATURES
46 CFM @ 175 PSI
14 GPM @ 2850 PSI
1000- 1200 ENGINE RPM, 950-1050 SHAFT RPM
INTEGRATED W/ 12V FAN
CHAMPION R-30D, 15 HP
10 MICRON
600 LBS.
38W X 29H X 27.5D
12V DC
35 GAL REC’D | 15 GAL MIN
28 GAL MIN
3000 PSY HYD PRV, INTERSTAGE PRV
